Name: Beacon Scanner - 3D Printer Homing & Surface Scanner REV H
SKU: 591865

Product Details ＋

Are you looking to buy a Beacon 3D Printer Homing & Surface Scanner in Australia?

The latest updated version of Beacon REV H is available with a new form-factor, 15% higher sensitivity, 40% less thermal drift, and an on-board accelerometer!

Eddy current displacement sensor for homing and surface scanning in 3D printers.

Works exclusively with . Comes fully assembled and includes a USB cable.

WARNING: Requires a conductive surface or substrate on printer bed to work. Bed stacks that include oversized fixed magnets are not recommended and may not work with Beacon.

Eddy current surface scanner for 3D printers:

Native displacement output – no z motion necessary for sensing
Scan mode mesh – dense grid sampling in a matter of seconds
Low thermal drift – minimized by design, active compensation for everything else

Printer Compatibility:

Firmware: Klipper
Connection: USB to Single Board Computer
Bed: Conductive surface or substrate, 400um or thicker. Bare steel, WHAM BAM, PEI coated or laminated steel, etc. Use with beds employing large or oversized fixed magnets is not recommended.

Includes:

1x Custom USB cable (6ft)

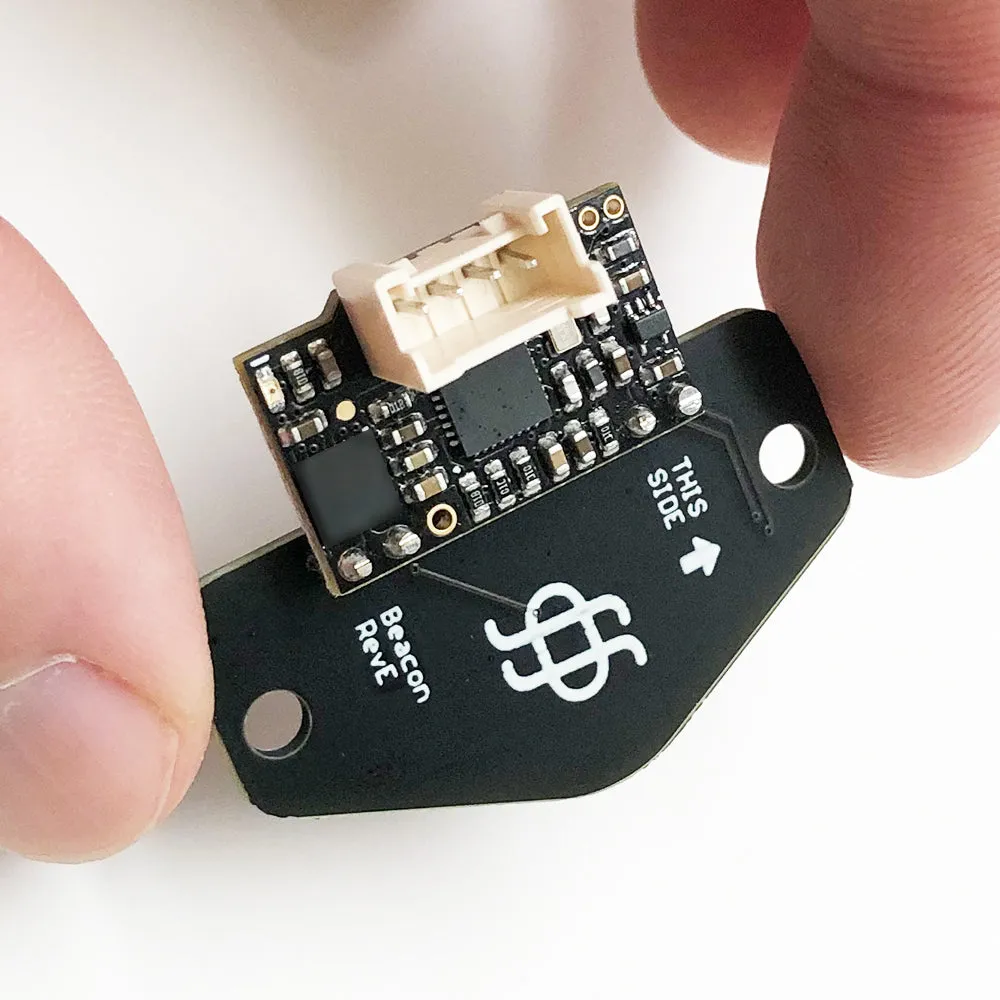

1x Beacon board (main PCB, sensing PCB, headers, cable connector)

Variations – this is important for mounting Beacon to your tool head appropriately:

Normal: main PCB and sensing PCB are assembled flat

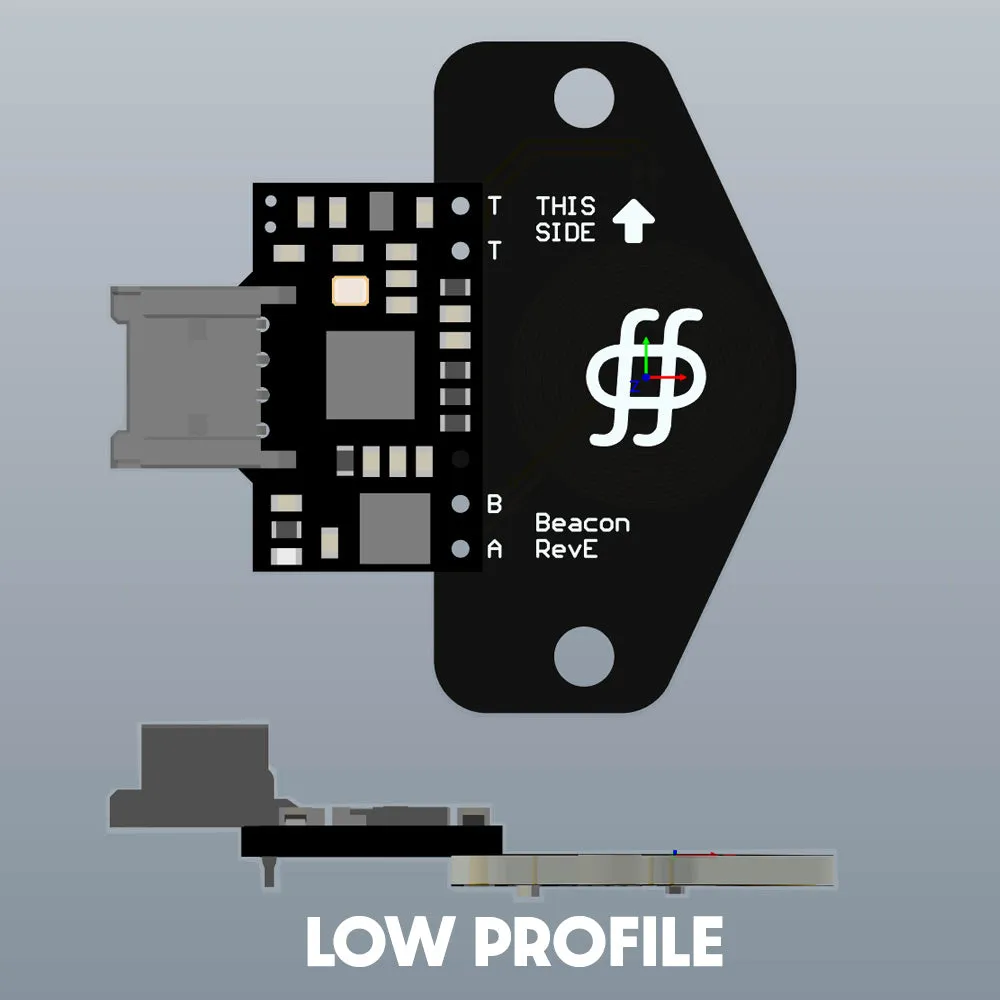

Low Profile: main PCB and sensing PCB are assembled flat (as well as the cable connector)

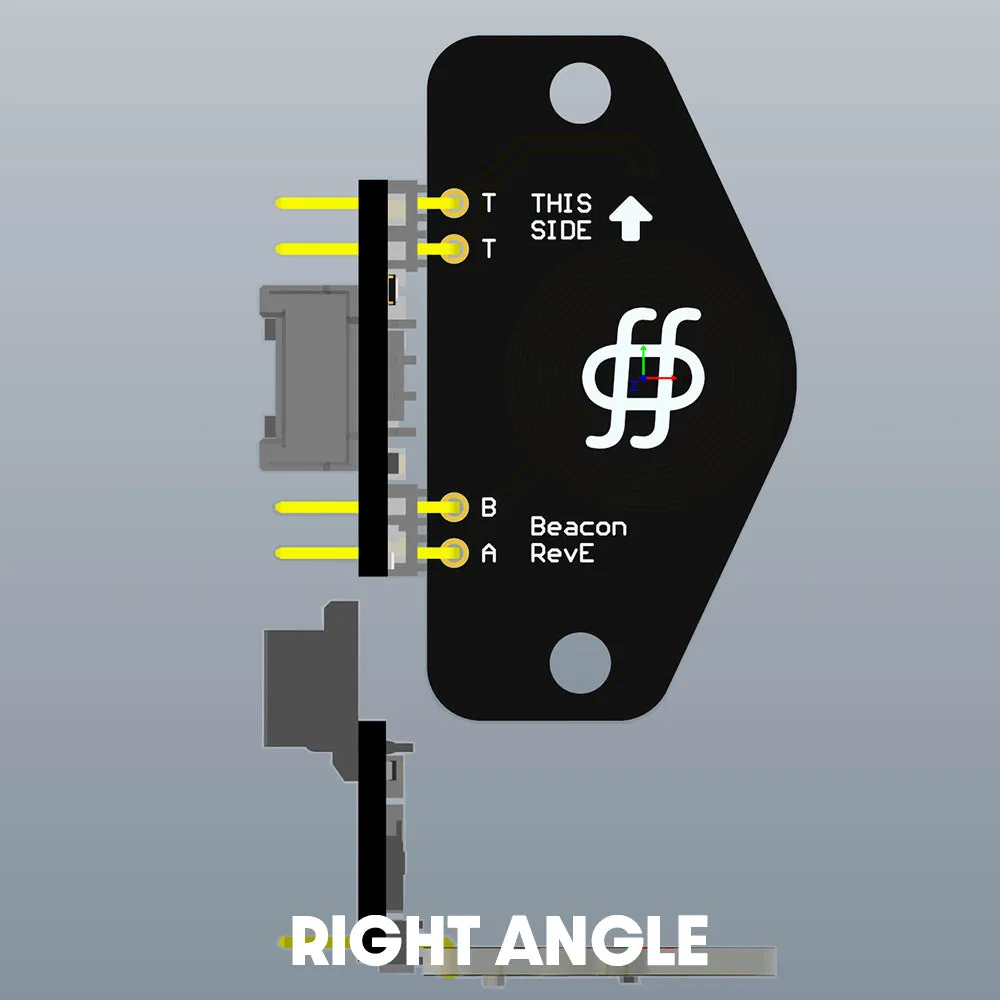

Right Angle: main PCB and sensing PCB are assembled at 90 degrees to each other

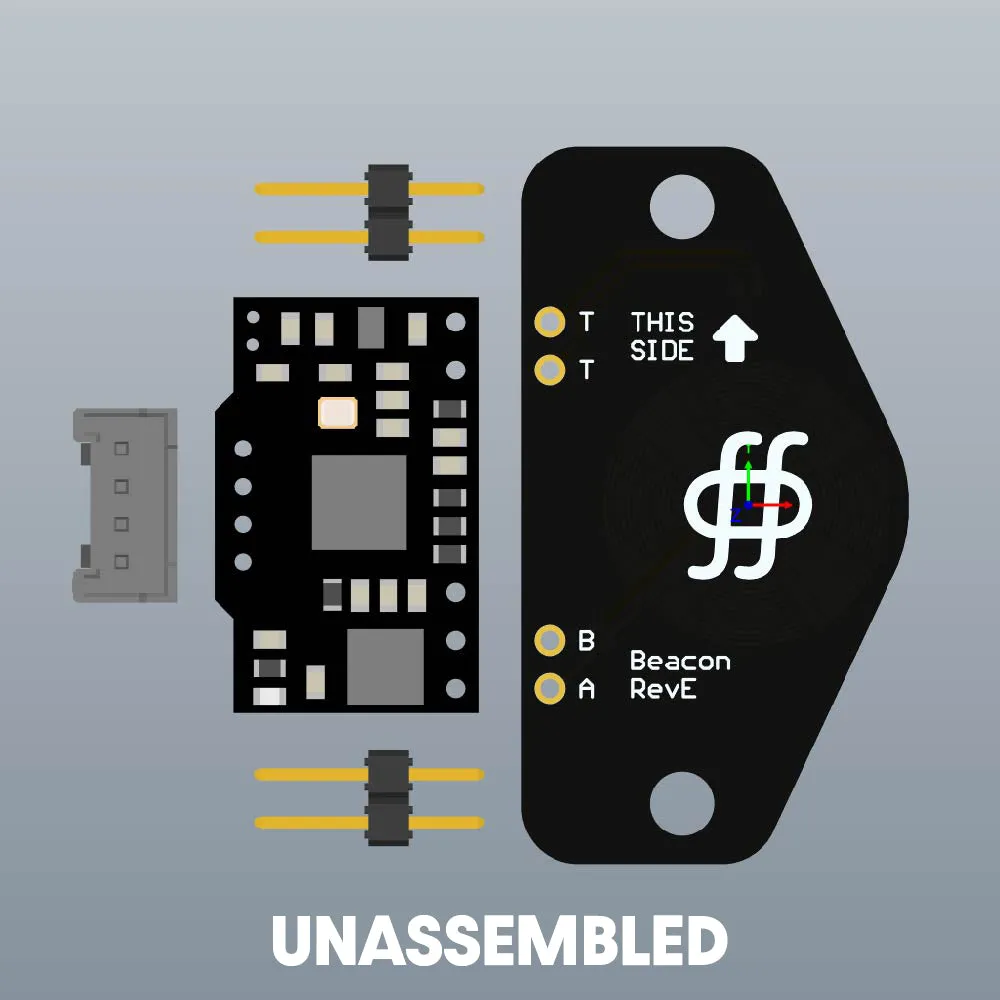

Unassembled: all the parts come unassembled ()
